Inventor of the Chronograph

1816

The recent discovery of a hitherto unknown timepiece is rewriting the history of watch development. It turned out to be the first ever chronograph, although its maker, Louis Moinet, called it a Compteur de Tierces. According to hallmarks on the dust cover, the chronograph was started in 1815 and completed the following year.

Two world records

Compteur de tierces

As the inventor of the world’s first chronograph in 1816, Louis Moinet has been officially awarded two world records for his Compteur de Tierces — the “World’s First Chronograph” and the “First High-Frequency Stopwatch“. These titles affirm his status as a true pioneer in modern watchmaking.

Louis Moinet awarded for the «World’s First Chronograph»

After the best part of six months of procedures and thorough investigations, Louis Moinet is [...]

A new world record for the “First hight-frequency stopwatch”

Louis Moinet wins a new world record title for the first high-frequency stopwatch! [...]

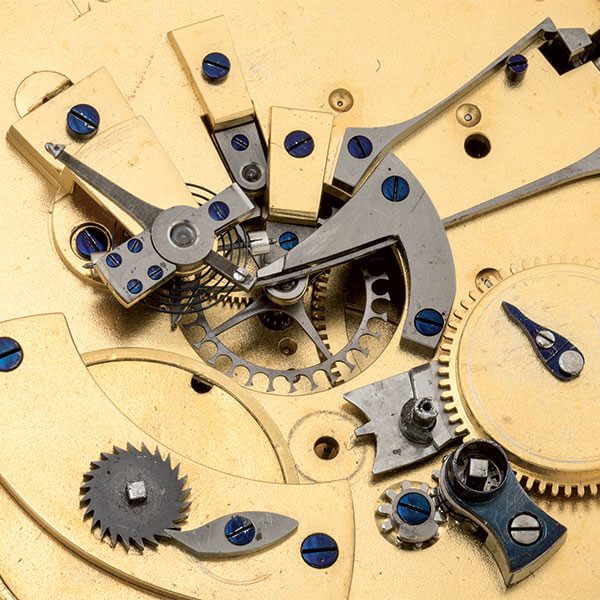

High-frequency pioneer

The chronograph’s balance beats at 216,000 vibrations an hour, meaning at the then unimaginable frequency of 30Hz. To put that into perspective, the usual balance frequency in a modern wristwatch is 28,800 v/h or 4Hz.

Louis Moinet is thus the father of high-frequency time measurement, although it was not until exactly a century later that a watch was made to beat his record.

Most accurate time device of its time

In the 19th century, watchmakers sought to increase the precision with which they could measure time by increasing the frequency of their watches. By 1820 the generally accepted limit was time measurement to the tenth of a second.

Moinet’s Compteur de Tierces (thirds timer) was thus by far the most precise instrument of its period, measuring time six times more accurately than the norm. Moinet’s division of time into sixtieths of a second is another historical achievement that places him among the great contributors to modern watchmaking.

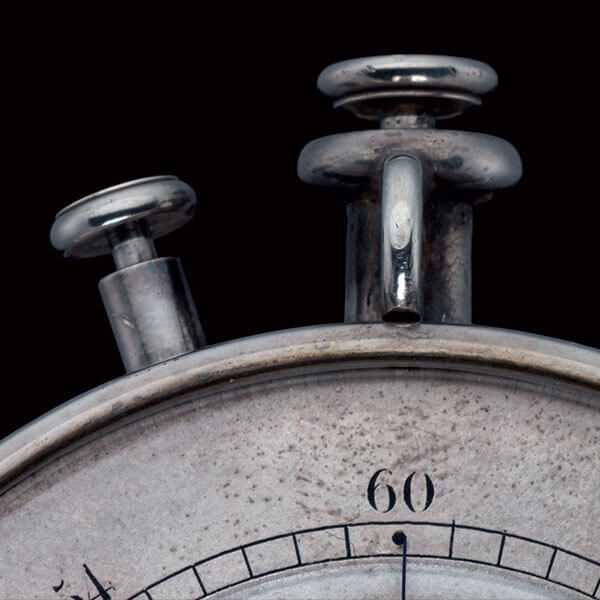

Reset function

The stop, start and reset functions for the central hand are controlled by two buttons, which qualifies it as a chronograph in the modern sense, although the term was coined much later. The reset function was revolutionary for the time.

Until recently, it had been thought that the reset function dated from Adolphe Nicole’s patent of 1862. However, Louis Moinet had in fact invented the reset function half a century earlier for his Compteur de Tierces, completed in 1816.

Setting his sights on the stars

Moinet made the timer for an astronomical transit instrument, originally mounted for use at sea, that he had adapted to track the movement of heavenly bodies from land.

According to a letter he wrote in 1823:

“I came to Paris in 1815 with the sole purpose of devising and making a Compteur de Tierces. The difficult and seldom attempted realisation of this instrument featuring a new construction has achieved my purpose most satisfactorily.”

Why did Moinet need such high frequency ? He was timing the passage of stars, planets and even planetary moons. A frequency of 216,000 v/h imparted 60 vibrations a second, thus dividing the second into sixtieths. He made the compteur initially to set the precise distance between the crosshairs in his telescope, as he describes in his Traité d’Horlogerie (1848):

“ This invention came to me during my observations in the following circumstances. I had acquired a small mobile quadrant by the famous Borda (maker of the repeating circle). This fifinely English-made instrument was balanced on rubies, and its maker supposed that an ingenious system of counterweights would preserve it via its own inertia from the motion of the ship, thereby providing observations at sea almost as exact as those obtained on land. But the project was not successful.”
“ Having acquired the instrument for ano-ther purpose, I added – for terrestrial observations – an azimuth circle with a graduated Vernier scale by the late Fortin, two intersecting levels, a polished mobile axis and a threefooted stand with levelling screws and a scale etc. Nonetheless, the scope’s narrow field of vision put the reticule lines very close together, and it was to remedy this inconvenience of failing to see a line, that I thought up the Compteur de Tierces, which worked very well by giving me a precise distance between the reticule lines.”

Moinet’s compteur had to function for at least 24 hours at an energy-hungry frequency to time successive transits of a star. To minimise energy consumption, his escapement ran on oiled rubies. He reported that it had worked very well for a prolonged period.
